Introduction
Congratulations on your purchase of the Xilinx Automotive ECU Develop-
ment kit including the XA1600E board designed by Si-Gate.
The XA1600E provides designers with a con? gurable ECU right out of the
box suitable for a wide range of Automotive and Industrial applications.
Please review the following reference manual thoroughly to receive the
most of your new purchase.

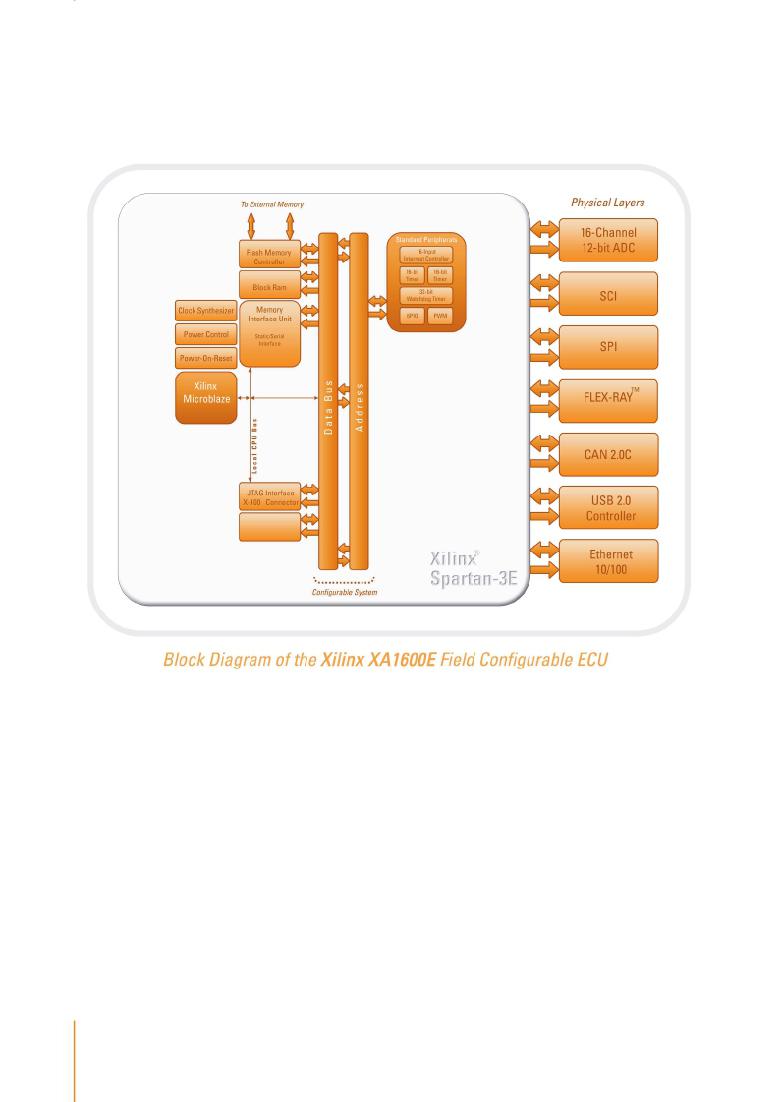

The XA1600E is a complete 32-bit Field Con? gurable ECU platform, combining the
highly popular Xilinx MicroBlaze? processor core with standard System-on-Chip pe-
ripherals and over 150 user programmable I/O’s. It is contained within a Xilinx Spartan-
3A? FPGA with programmable logic for custom driven IP
applications, a robust memory subsystem, and a full suite of Automotive and Industrial
peripherals. The XA1600E enables programmable System-on-Chip applications and
expands traditional development platforms by including necessary physical layers on-
board the ECU. The XA1600E supports physical layers for 10/100 Ethernet, JTAG, USB
2.0, 12-bit ADC, High and Low Speed CAN, FlexRay?, LIN, K-Line, UART, and SPI along
with on-board Flash and SRAM memory.
The XA1600E is ideal for projects where ? exibility and expand-ability is needed for
your future ECU developments.Please visit www.xilinx.com/automotivekits for addi-
tional or updated information which may not be presented in this manual.
